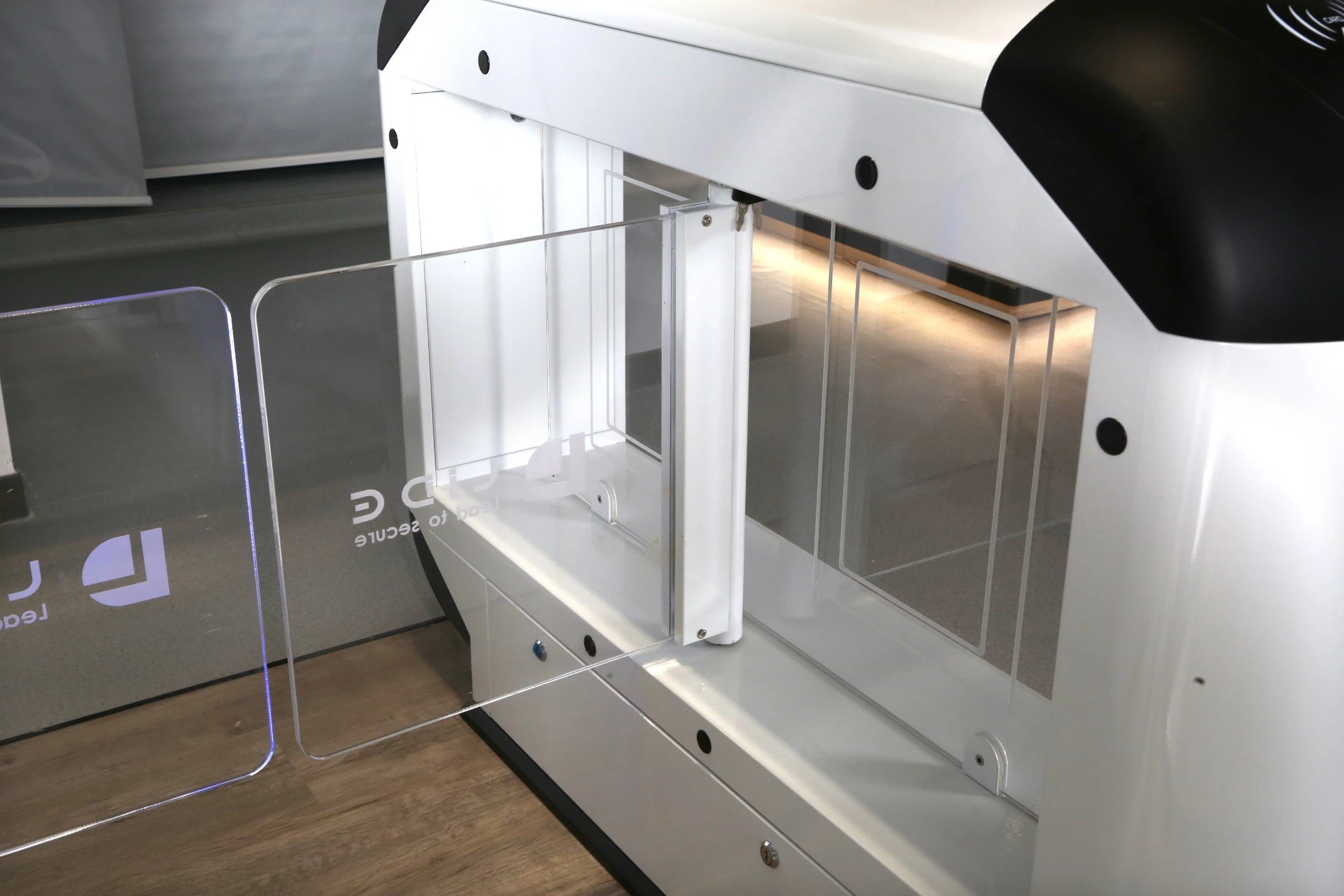

Swing gate: It is mainly used for the management of the entrance and exit of the
passage. It has the characteristics of fast opening, safety and convenience, etc. It
is the ideal management and guidance equipment for high-frequency entrance
and exit of pedestrians. Widely used in airports, subway stations, stations,
terminals, attractions, parks, shopping malls, office buildings, pedestrian
walkways and other places.
Customizable extended functions:
I. Standard parameters:
| Material | Pre paint steel + acrylic |
| Accessories | LED light board + acrylic swing arm + anti-collision movement + tempered glass partition + rolling bearing4. Channel width: 600-900mm (customizable) Standard channel 600mm |
| Material structure | 304 stainless steel, tempered glass, acrylic |
| Material | 304 stainless steel, outer box 1.2mm -1.5mm |
| Passing speed | 35-45 people / minute |
| Communication interface | RS232 RS485 |
| Opening time | 0.2s |
| Working temperature | -25 ° C ~ 70 ° C |
| Gate opening method | IC card, ID card, barcode card, ID card, |
| Drive motor | DC brushless 24V |
| Traffic opening method | RFID |
| Working environment | indoor and outdoor (outdoor canopy) |
| Protection level | IP45 or above |
| Power | 60 -90w |
| Life | 18 million times |
| Open method | |
Function:
| Automatic homing function |
| Power-off and opening function |
| Anti-illegal break-in function |
| Intelligent linkage alarm |
| Anti-reverse passage function |
| Anti-pinching and anti-collision function |
| Anti-collision function |
| Passing instruction function |
Customizable extended functions:
1.Counting and alarm functions; |
2. The length of the chassis can be customized according to customers, the shortest is 1.2 meters, the material of the swing arm is: transparent acrylic, the colors are: the colors can be customized separately |
| 3. Case material is 304, other materials can also be customized |
| 4.Remote control switch |
| 5. Dynamic integrated face recognition |
6. Can add emergency escape function, in the case of special emergency, start by remote button |
| 7.Fingerprint recognition of time attendance |
| 8. QR code pass |
