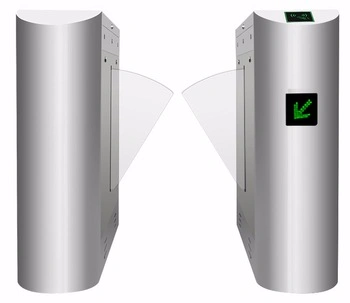

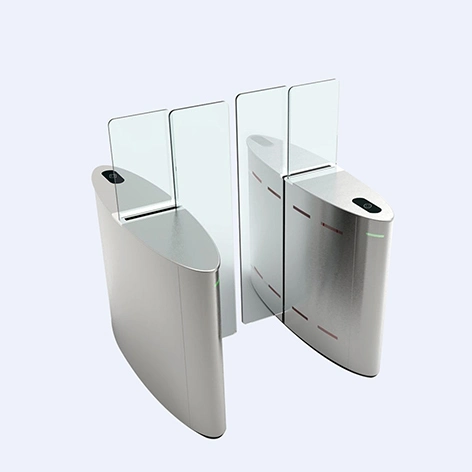

Zenidea access gate is an intelligent access management device developed and produced by our company after many years. This device organically integrates mechanical, electronic, microprocessor control and various reading and writing technologies.
The speed gate turnstile is with high-quality DC brushless motor.The motor is configured and advanced servo control system which carried to truly achieve precise control, stable performance with no maintenance.Lossless mechanism structure is based on German technology adopted to ensure long lifespan.The matrix type photoelectric stereoscopic detection technology is adopted to sensitively detect the behaviors that threaten the passageway safety, such as illegal intrusion, reverse passing, tail-gating, and give out alarms through sound, light, etc.The turnstile can be combined with other security systems.
2. Material:304 stainless steel, tempered glass, acrylic.
3. Aisle width:600-900mm
4. Outer housing: 1.5mm thickness.
5. Drive motor:DC 24V servo motor,noiseless.
6.Traffic direction: one-way traffic / two-way traffic;Passing speed:35-45 persons / minute
7.Open way:ID/IC swiping card, reading head verification, infraredinductio,button, etc.
8.Open signal: dry contact signal.
9. Protection function: encoder limit, clutch anti-collision, infraredanti-pinch, illegal intrusion infrared alarm (imported infrared)
10.Life: no less than 10 million times; power: 90-100w
