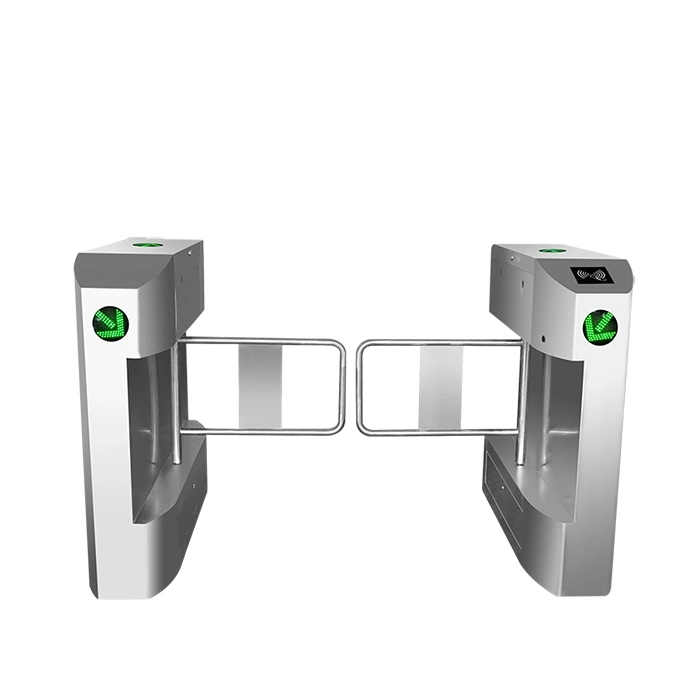

Supermarket Entrance Gate Swing Gate Access Security Gate

Zenidea access gate is an intelligent access management device developed and produced by our company after many years. This device organically integrates mechanical, electronic, microprocessor control and various reading and writing technologies.

The appearance of the equipment is made of stainless steel cut by laser then welding, beautiful and generous, rust-proof, durable, and the external use of standard electrical interface, can easily integrate the bar code card, ID card, IC card and other card readers into the equipment, it provide a civilized and orderly way, but also to eliminate illegal personnel access; In addition, the system is specially designed to meet the requirements of fire protection, in the event of emergency, to ensure the passage unimpeded, facilitate the timely evacuation of personnel;

1. Size:1200*240*1000 mm;
2. Barrier length:600mm;Aisle width:1200mm
3.Outer housing:1.5mm
4.Material:304 stainless steel, acrylic;
5.Drive motor:DC 24V brushless motor,noiseless
6.Traffic direction: one-way traffic / two-way traffic;Passing speed:35-40 persons / minute
7.Open way:ID/IC swiping card, reading head verification, button,etc.
8. Open signal: dry contact signal.
9. Protection function: encoder limit, clutch anti-collision, infraredanti-pinch, illegal intrusion infrared alarm.
10. Life: 9 million times; power: 60-70w
